5um 1um 0.5um SINO Digital Readout System SDS5-4VA Digital Display 5 Axes LCD Screen

5um 1um 0.5um SINO Digital Readout System SDS5-4VA Digital Display 5 Axes LCD Screen

The SDS5 DRO uses modern 32-bit embedded computing technology, a 5.6'5" TFT colorful screen with Chinese and English captions, up to 4 axes, a high-capacity hard drive, and high-speed USB equipment for PC connectivity.

SDS5-4VA DRO Digital Readout DRO Functions:

PCD circumferential division (applicable to spark testers and milling machines)
Function for machining involute chambers (applicable to milling machines)
Bevel machining and angular surface processing (milling machine-specific)
N3 function (milling machine-specific)
Using a milling machine, diagonal boring
R-arc function (milling machine-specific)
Function for measuring taper (Lathe only)
200-tool collection (lathe applicable)
Function that prevents dithering (applicable to grinding machines)

Grating Ruler specifications and SINO SDS5-4VA specifications

Specification

SDS5-4VA Digital Readout System from SINO
Type: DRO Luxury Type
4 axis input
Signal output: TTL/RS-422
Residence: Metal
Glass scales for manual or CNC lathes, milling, boring, and grinding machines, and EDM
Position Measuring Device for Single, Three, or Four Axis Grating Scale
Assurances: CE, ROHS, and ISO 9001
IP67 Sealing Protection Class
Strong and long-lasting, simple to install, and user-friendly
Machine Test Report is available.

Product image /photos:

The rack in the picture is optioned, not standard product.

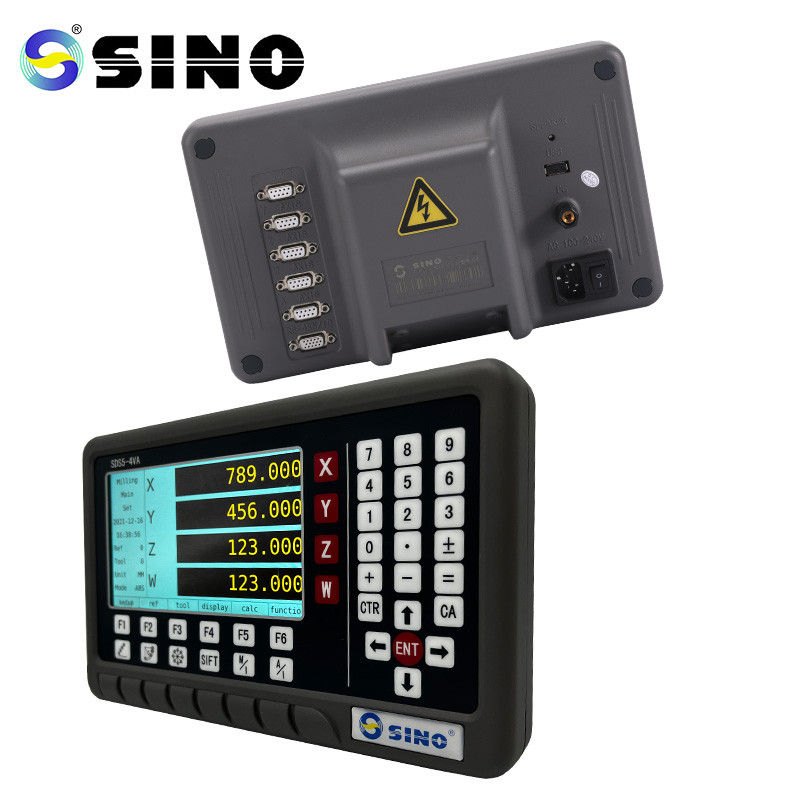

5um SINO Digital Readout System

SINO Digital Readout System 5 Axes

5um 1um 0.5um SINO Digital Readout System SDS5-4VA Digital Display 5 Axes LCD Screen Images
