SINO KA600 1500mm Linear Glass Scale Machine IP53 For EDM Machine

Brand Name : SINO

Model Number : SINO KA600-1500mm Linear Glass Scales

Certification : CE, RoHS

Place of Origin : GUANGZHOU

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 3000 per month

Delivery Time : 5-8 days

Packaging Details : Carton box

Item : SINO KA600-1500mm Linear Glass

Model : KA600-1500mm

Usage : EDM machine

Resolution : 0.5/1/5um

Output : TTL/ RS-422

Protection Class : IP53

Operating temperature : 0℃-45℃

Contact Now

SINO KA600-1500mm Linear Glass Scales Machine For Milling Boring Machine



KA-600 series linear encoder is the most commonly used standard model.



Specification





Model KA-600 series
Travel length(mm) 1000-3000
Scaling distance 0.02mm(50 lines/mm)
Accuracy ±3µm,±5µm,±15µm/m (20±0.1℃)
Resolution(um) 0.5um/1um/5um
Reference Signal Every 50mm per length specification
Seal protection IP53
Moving speed

High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min

Output signal Square wave TTL / RS422
Operating temperature 0℃-45℃
Storage temperature -20℃--80℃
Humidity 100% not condensed
Voltage 5V/24V

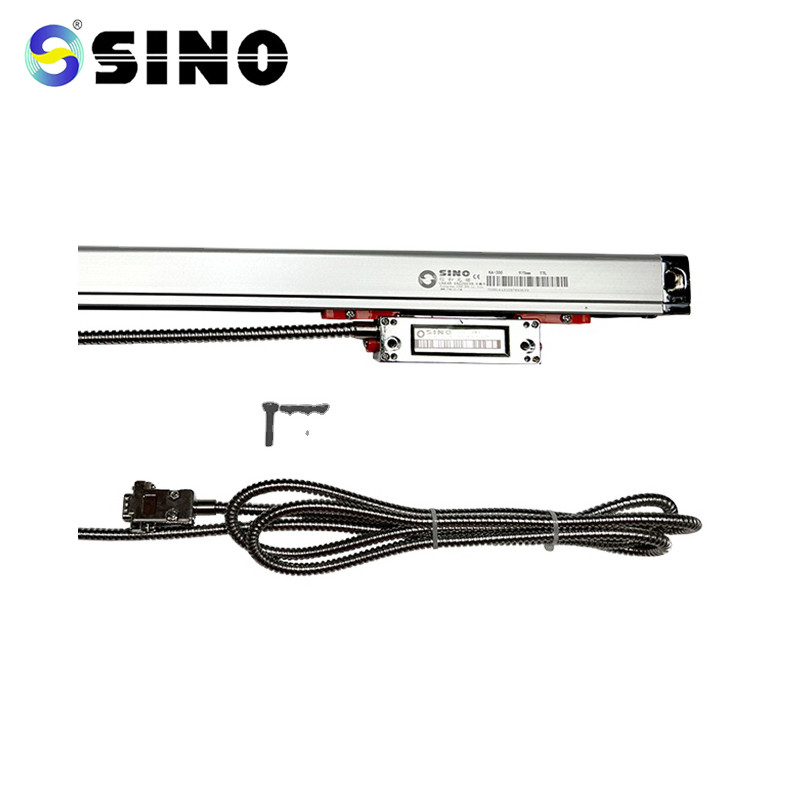

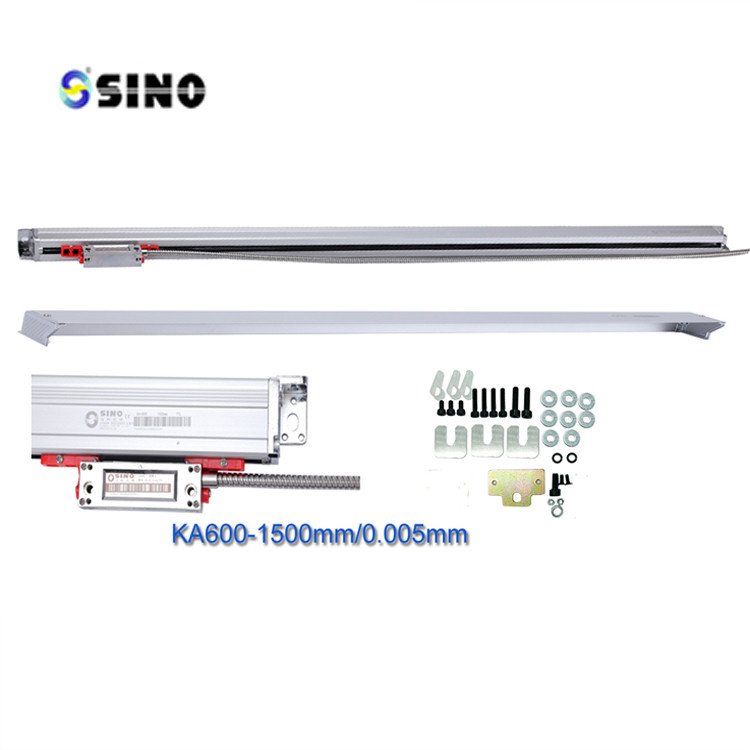

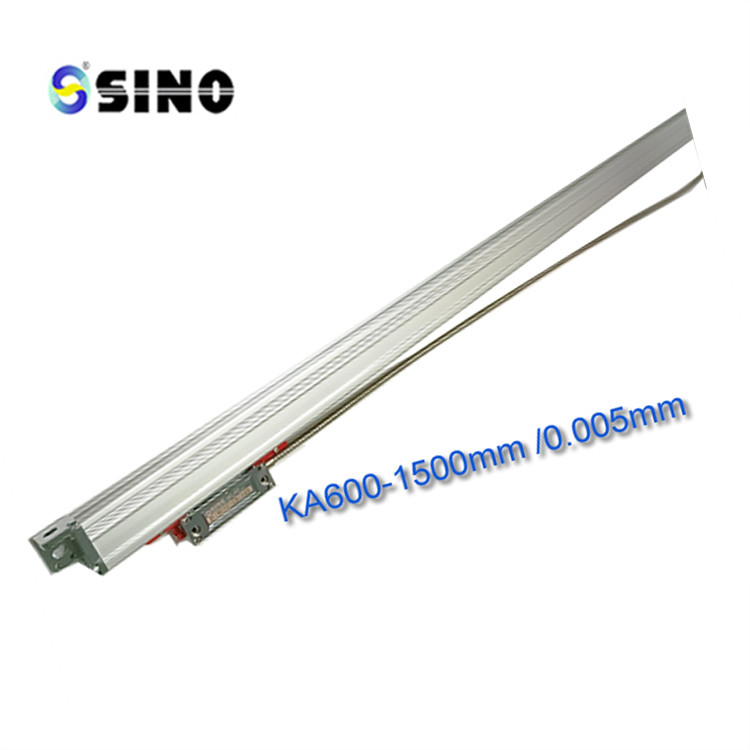

Product images



SINO KA600 1500mm Linear Glass Scale Machine IP53 For EDM MachineSINO KA600 1500mm Linear Glass Scale Machine IP53 For EDM MachineSINO KA600 1500mm Linear Glass Scale Machine IP53 For EDM MachineSINO KA600 1500mm Linear Glass Scale Machine IP53 For EDM Machine



All scales will be tested before delivery.

Each scale have its own test report:



SINO KA600 1500mm Linear Glass Scale Machine IP53 For EDM Machine
